Shining 3D AccuFab-L4K (Orange top cover)

To order this item in the states of California, Illinois or Texas please call 1-833-448-9776 or email contact@itxpros.com.

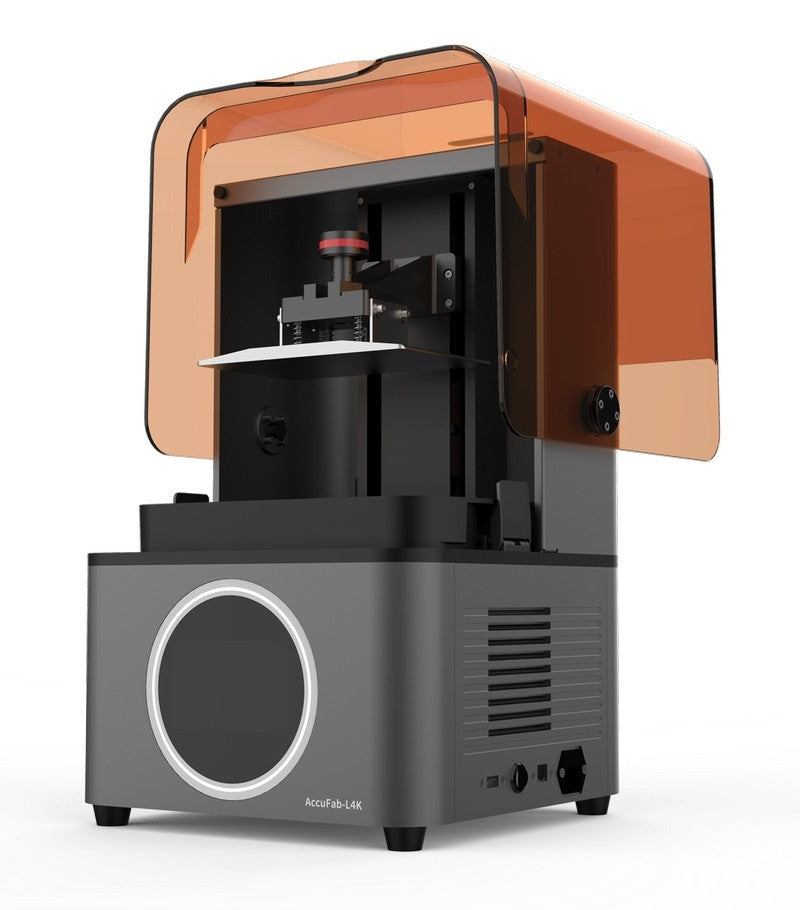

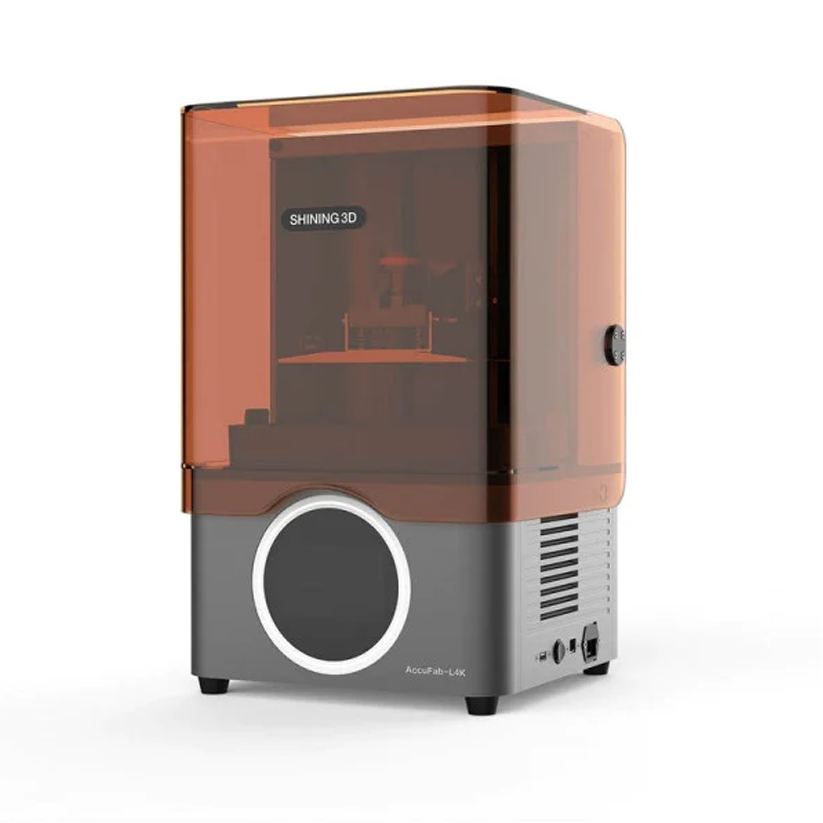

The AccuFab-L4K is a high-precision LCD 3D printer from Shining 3D. The machine is aimed at improving prototyping efficiency and accelerating the product development process. To achieve these purposes, the printer is equipped with a large build volume of 7.6 x 4.7 x 7.1 inches (192 x 120 x 180 mm), which enables it to handle small batch production projects without compromising on speed (which is up to 50 mm/s).

The 4K resolution and IT7 accuracy ensure high fidelity of printed objects. With the printer’s light intensity control function, luminance uniformity reaches up to 90%. Reliable drive system and micro-level control make for quality and stable operation of the AccuFab-L4K.

Technical specifications

• BASF engineering material   Durable — ST45, ST80; Rigid — RG35, RG50; Flexible — FL60, EL150
• Connectivity Wi-Fi, Ethernet, ThumbDrive
• Layer thickness 0.025 / 0.05 / 0.075 / 0.1 mm
• Light intensity 3 mw/cm^2
• Outer dimensions millimeters (xyz) 360 x 360 x 530 mm
• Print size 192 x 120 x 180 mm
• Print speed 10–50 mm/h
• Resolution 3840 x 2400
• SHINING 3D engineering material   White — TR01, S1; Yellow — DM12; Transparent — SG01; Black — S2; Washable — W1
• Third-party certified resin Third-party resin materials approved by SHINING 3D
• Weight kg 19 kg
• Technology LCD
• Light source UV LED + LCD
• Working humidity 30–70%
• Working temperature 20–30 ℃
• Interface 5" touch screen
• Pixel size 0.05 mm
• Tolerance ±0.05 mm
• Wavelength 405 nm
